生产环境Sentinel改造实践（二）：规则管理推送改造

分类术说
标签
Sentinel
SilentBlade
SilentBlade
2023-01-11 2 分钟阅读 27 阅读

前文介绍了 Sentinel 的核心概念，本文开始动手对规则管理与推送机制进行改造，并以“流控规则”为例进行具体实现。

Sentinel Dashboard 改造

  1. 在 com.alibaba.csp.sentinel.dashboard.rule.nacos 包下新建 NacosConfig.java：

    java
    package com.alibaba.csp.sentinel.dashboard.rule.nacos;

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.datasource.Converter;
import com.alibaba.fastjson.JSON;
import com.alibaba.nacos.api.PropertyKeyConst;
import com.alibaba.nacos.api.config.ConfigFactory;
import com.alibaba.nacos.api.config.ConfigService;
import lombok.Getter;
import lombok.Setter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.List;
import java.util.Properties;

/**
 * @wiki https://github.com/eacdy/Sentinel-Dashboard-Nacos
 * add by tam
 */
@Configuration
public class NacosConfig {

    @Bean
    public Converter<List<FlowRuleEntity>, String> flowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<FlowRuleEntity>> flowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, FlowRuleEntity.class);
    }

    @Bean
    public ConfigService nacosConfigService() throws Exception {
        NacosProperties nacosProperties = nacosProperties();
        Properties properties = new Properties();
        properties.put(PropertyKeyConst.SERVER_ADDR, nacosProperties.getServerAddr());
        if (!nacosProperties.getNamespace().isEmpty()) {
            properties.put(PropertyKeyConst.NAMESPACE, nacosProperties.getNamespace());
        }
        return ConfigFactory.createConfigService(properties);
    }

    @Bean
    @ConfigurationProperties(prefix = "spring.cloud.sentinel.datasource.nacos")
    public NacosProperties nacosProperties() {
        return new NacosProperties();
    }


    @Getter
    @Setter
    public static class NacosProperties {
        private String serverAddr;
        private String namespace;
        private String groupId;
    }
}

    这里主要接收三个参数：serverAddr（Nacos 服务器地址）、namespace（Nacos 命名空间）和 groupId（Nacos 分组）。

    接着在 application.properties 中新增以下配置：

    properties
    spring.cloud.sentinel.datasource.nacos.server-addr=172.16.1.20:8848
spring.cloud.sentinel.datasource.nacos.groupId=DEFAULT_GROUP
spring.cloud.sentinel.datasource.nacos.namespace=wuyan_local

  2. 在同级目录下新增 NacosConfigUtil.java：

    java
    package com.alibaba.csp.sentinel.dashboard.rule.nacos;

import com.alibaba.csp.sentinel.dashboard.util.JSONUtils;
import com.alibaba.nacos.api.config.ConfigService;
import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.RuleEntity;
import com.alibaba.fastjson.JSON;
import com.alibaba.csp.sentinel.slots.block.Rule;
import com.alibaba.csp.sentinel.util.AssertUtil;
import com.alibaba.csp.sentinel.util.StringUtil;
import com.alibaba.nacos.api.exception.NacosException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.ArrayList;
import java.util.List;
import java.util.stream.Collectors;

/**
 * @wiki https://github.com/eacdy/Sentinel-Dashboard-Nacos
 * add by tam
 */
@Component
public class NacosConfigUtil {
    @Autowired
    private NacosConfig.NacosProperties nacosProperties;

    public static final String FLOW_DATA_ID_POSTFIX = "-flow-rules";
    public static final String DEGRADE_DATA_ID_POSTFIX = "-degrade-rules";
    public static final String SYSTEM_DATA_ID_POSTFIX = "-system-rules";
    public static final String PARAM_FLOW_DATA_ID_POSTFIX = "-param-flow-rules";
    public static final String AUTHORITY_DATA_ID_POSTFIX = "-authority-rules";
    public static final String GATEWAY_FLOW_DATA_ID_POSTFIX = "-gateway-flow-rules";
    public static final String GATEWAY_API_DATA_ID_POSTFIX = "-gateway-api-rules";
    public static final String DASHBOARD_POSTFIX = "-dashboard";
    public static final String CLUSTER_MAP_DATA_ID_POSTFIX = "-cluster-map";

    /**
     * cc for `cluster-client`
     */
    public static final String CLIENT_CONFIG_DATA_ID_POSTFIX = "-cc-config";
    /**
     * cs for `cluster-server`
     */
    public static final String SERVER_TRANSPORT_CONFIG_DATA_ID_POSTFIX = "-cs-transport-config";
    public static final String SERVER_FLOW_CONFIG_DATA_ID_POSTFIX = "-cs-flow-config";
    public static final String SERVER_NAMESPACE_SET_DATA_ID_POSTFIX = "-cs-namespace-set";

    /**
     * 将规则序列化成JSON文本，存储到Nacos server中
     *
     * @param configService nacos config service
     * @param app           应用名称
     * @param postfix       规则后缀 eg.NacosConfigUtil.FLOW_DATA_ID_POSTFIX
     * @param rules         规则对象
     * @throws NacosException 异常
     */
    public <T> void setRuleStringToNacos(ConfigService configService, String app, String postfix, List<T> rules) throws NacosException {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }

        List<Rule> ruleForApp = rules.stream()
                .map(rule -> {
                    RuleEntity rule1 = (RuleEntity) rule;
                    //System.out.println(rule1.getClass());
                    Rule rule2 = rule1.toRule();
                    //System.out.println(rule2.getClass());
                    return rule2;
                })
                .collect(Collectors.toList());

        // 存储，给微服务使用
        String dataId = genDataId(app, postfix);
        configService.publishConfig(
                dataId,
                nacosProperties.getGroupId(),
                JSON.toJSONString(ruleForApp)
        );

        // 存储，给控制台使用
        configService.publishConfig(
                dataId + DASHBOARD_POSTFIX,
                nacosProperties.getGroupId(),
                JSONUtils.toJSONString(rules)
        );
    }

    /**
     * 从Nacos server中查询响应规则，并将其反序列化成对应Rule实体
     *
     * @param configService nacos config service
     * @param appName       应用名称
     * @param postfix       规则后缀 eg.NacosConfigUtil.FLOW_DATA_ID_POSTFIX
     * @param clazz         类
     * @param <T>           泛型
     * @return 规则对象列表
     * @throws NacosException 异常
     */
    public <T> List<T> getRuleEntitiesFromNacos(ConfigService configService, String appName, String postfix, Class<T> clazz) throws NacosException {
        String rules = configService.getConfig(
                genDataId(appName, postfix) + DASHBOARD_POSTFIX,
                //genDataId(appName, postfix),
                nacosProperties.getGroupId(),
                3000
        );
        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return JSONUtils.parseObject(clazz, rules);
    }

    private static String genDataId(String appName, String postfix) {
        return appName + postfix;
    }

    注意：完整的 dataId 规则为 [客户端 spring.application.name 配置的应用名] + -flow-rules``。

    这一点非常关键，客户端在集成 Nacos 与 Sentinel 配置时必须保持一致。

  3. 在 com.alibaba.csp.sentinel.dashboard.rule.nacos.flow 目录下新建 FlowRuleNacosProvider.java：

    java
    package com.alibaba.csp.sentinel.dashboard.rule.nacos.flow;

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRuleProvider;
import com.alibaba.csp.sentinel.dashboard.rule.nacos.NacosConfigUtil;
import com.alibaba.nacos.api.config.ConfigService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @author Eric Zhao
 * @since 1.4.0
 * add by tam
 */
@Component("flowRuleNacosProvider")
public class FlowRuleNacosProvider implements DynamicRuleProvider<List<FlowRuleEntity>> {

    @Autowired
    private ConfigService configService;

    @Autowired
    private NacosConfigUtil nacosConfigUtil;

    @Override
    public List<FlowRuleEntity> getRules(String appName) throws Exception {
        return nacosConfigUtil.getRuleEntitiesFromNacos(
                this.configService,
                appName,
                NacosConfigUtil.FLOW_DATA_ID_POSTFIX,
                FlowRuleEntity.class
        );
    }
}

    该类的主要作用是从 Nacos 拉取规则信息。

  4. 在 com.alibaba.csp.sentinel.dashboard.rule.nacos.flow 目录下新建 FlowRuleNacosPublisher.java：

    java
    package com.alibaba.csp.sentinel.dashboard.rule.nacos.flow;

import com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity;
import com.alibaba.csp.sentinel.dashboard.rule.DynamicRulePublisher;
import com.alibaba.csp.sentinel.dashboard.rule.nacos.NacosConfigUtil;
import com.alibaba.nacos.api.config.ConfigService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @author Eric Zhao
 * @since 1.4.0
 * add by tam
 */
@Component("flowRuleNacosPublisher")
public class FlowRuleNacosPublisher implements DynamicRulePublisher<List<FlowRuleEntity>> {

    @Autowired
    private ConfigService configService;

    @Autowired
    private NacosConfigUtil nacosConfigUtil;

    @Override
    public void publish(String app, List<FlowRuleEntity> rules) throws Exception {
        nacosConfigUtil.setRuleStringToNacos(
                this.configService,
                app,
                NacosConfigUtil.FLOW_DATA_ID_POSTFIX,
                rules
        );
    }
}

  5. 修改 com.alibaba.csp.sentinel.dashboard.controller.v2.FlowControllerV2 类：

    java
    	@Autowired
    @Qualifier("flowRuleNacosProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleNacosPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

    主要变更为增加 @Qualifier("flowRuleNacosProvider") 和 @Qualifier("flowRuleNacosPublisher") 注解注入。

Sentinel 客户端接入

如果是 Spring Cloud 项目，请在 pom.xml 中引入以下依赖：

xml
		<dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-datasource-nacos</artifactId>
        </dependency>

在 bootstrap.properties 中新增如下配置：

properties
server.port=8002
spring.application.name=qetesh-openapi
spring.cloud.nacos.discovery.server-addr=172.16.1.20:8848
spring.cloud.nacos.discovery.namespace=wuyan_local

spring.cloud.sentinel.transport.dashboard=localhost:8888
spring.cloud.sentinel.eager=true
spring.cloud.sentinel.datasource.ds1.nacos.server-addr=127.0.0.1:8848
spring.cloud.sentinel.datasource.ds1.nacos.dataId=${spring.application.name}-flow-rules
spring.cloud.sentinel.datasource.ds1.nacos.namespace=wuyan_local
spring.cloud.sentinel.datasource.ds1.nacos.groupId=DEFAULT_GROUP
spring.cloud.sentinel.datasource.ds1.nacos.rule-type=flow

注意：serverAddr、namespace 和 groupId 三个参数需与 Dashboard 保持一致，同时 spring.cloud.sentinel.datasource.ds1.nacos.rule-type 的值应设为 flow（流控）。

在启动类中增加测试代码：

java
import com.alibaba.csp.sentinel.annotation.SentinelResource;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@SpringBootApplication
@EnableDiscoveryClient
public class QeteshOpenapiApplication {

    public static void main(String[] args) {
        SpringApplication.run(QeteshOpenapiApplication.class, args);
    }

    @RestController
    static class TestController {

        @SentinelResource("ken2")
        @GetMapping("/hello")
        public String hello() {
            return "itweek.top";
        }

    }

}

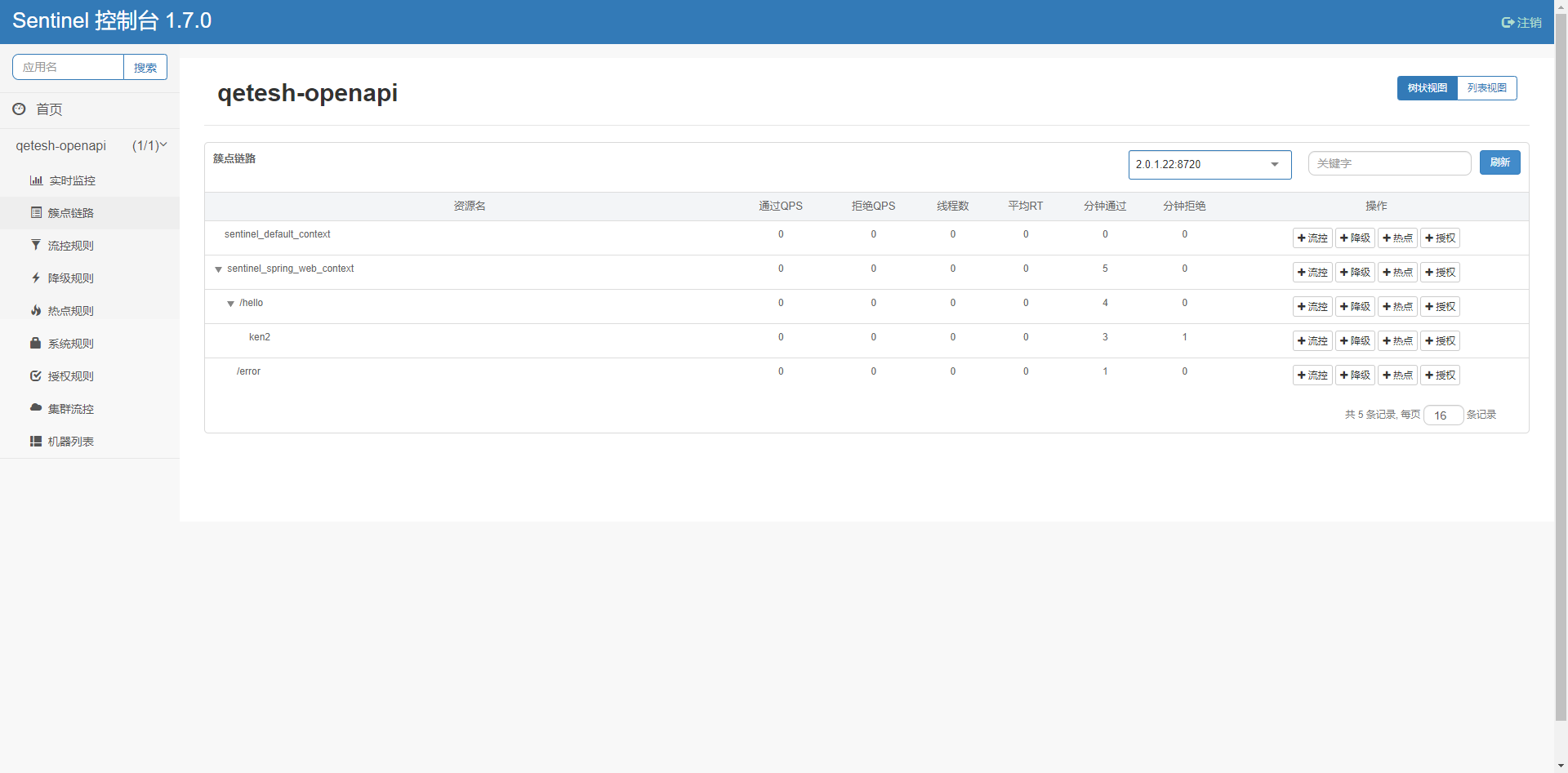

启动项目并访问接口，即可在 Dashboard 中看到相关配置：

DashBoard列表

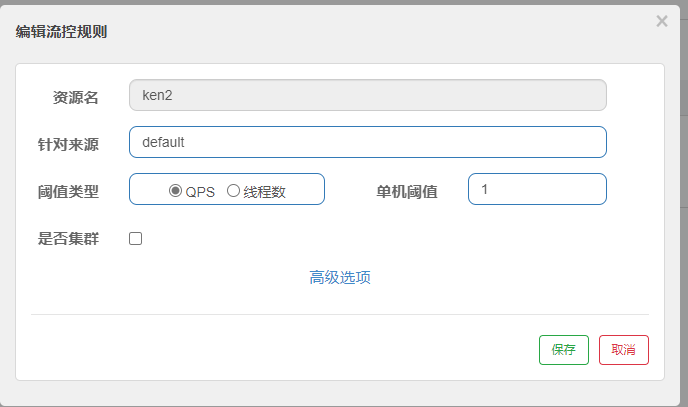

在流控规则页面新增如下配置：

流控规则新增配置

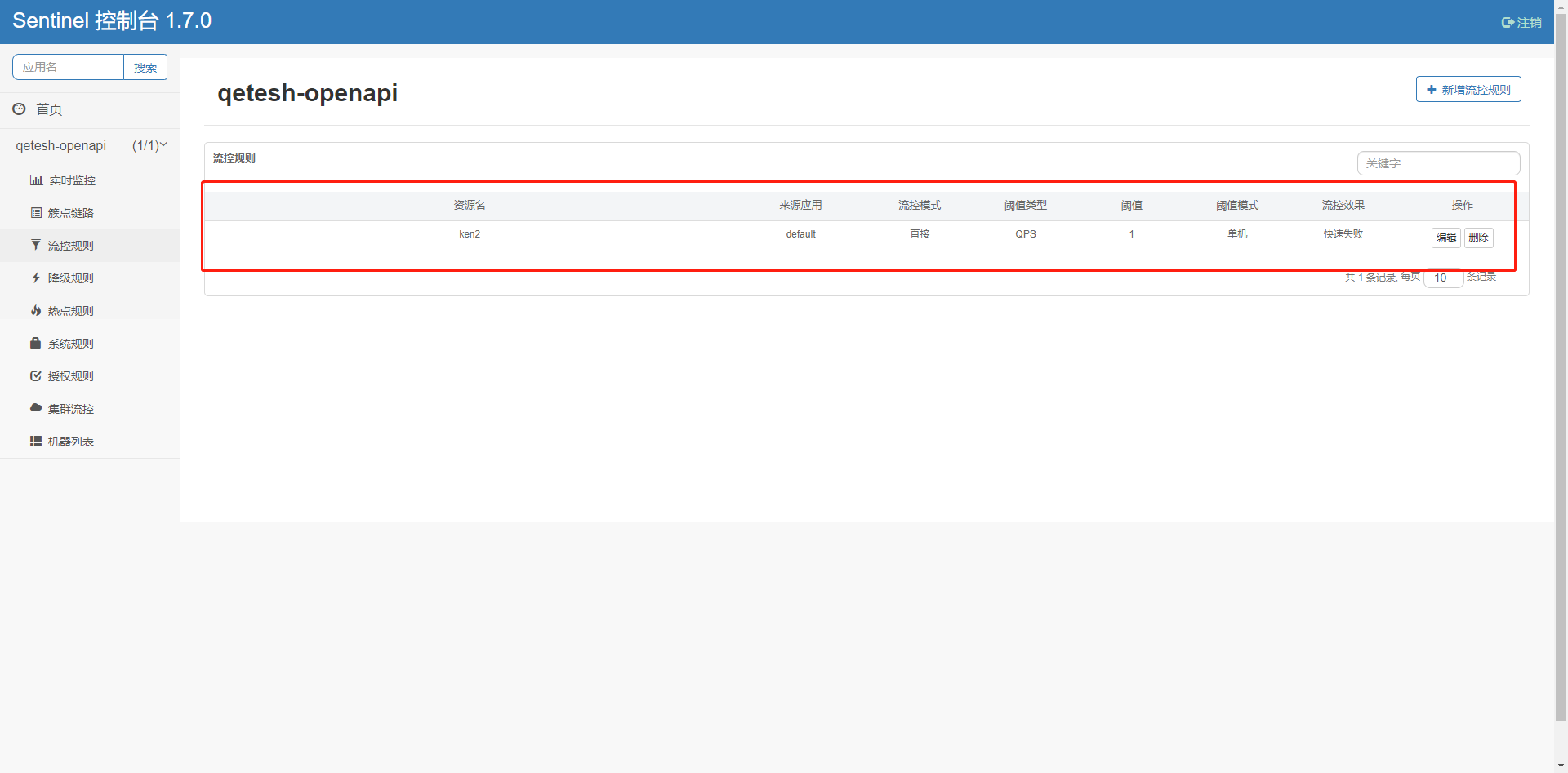

流控规则

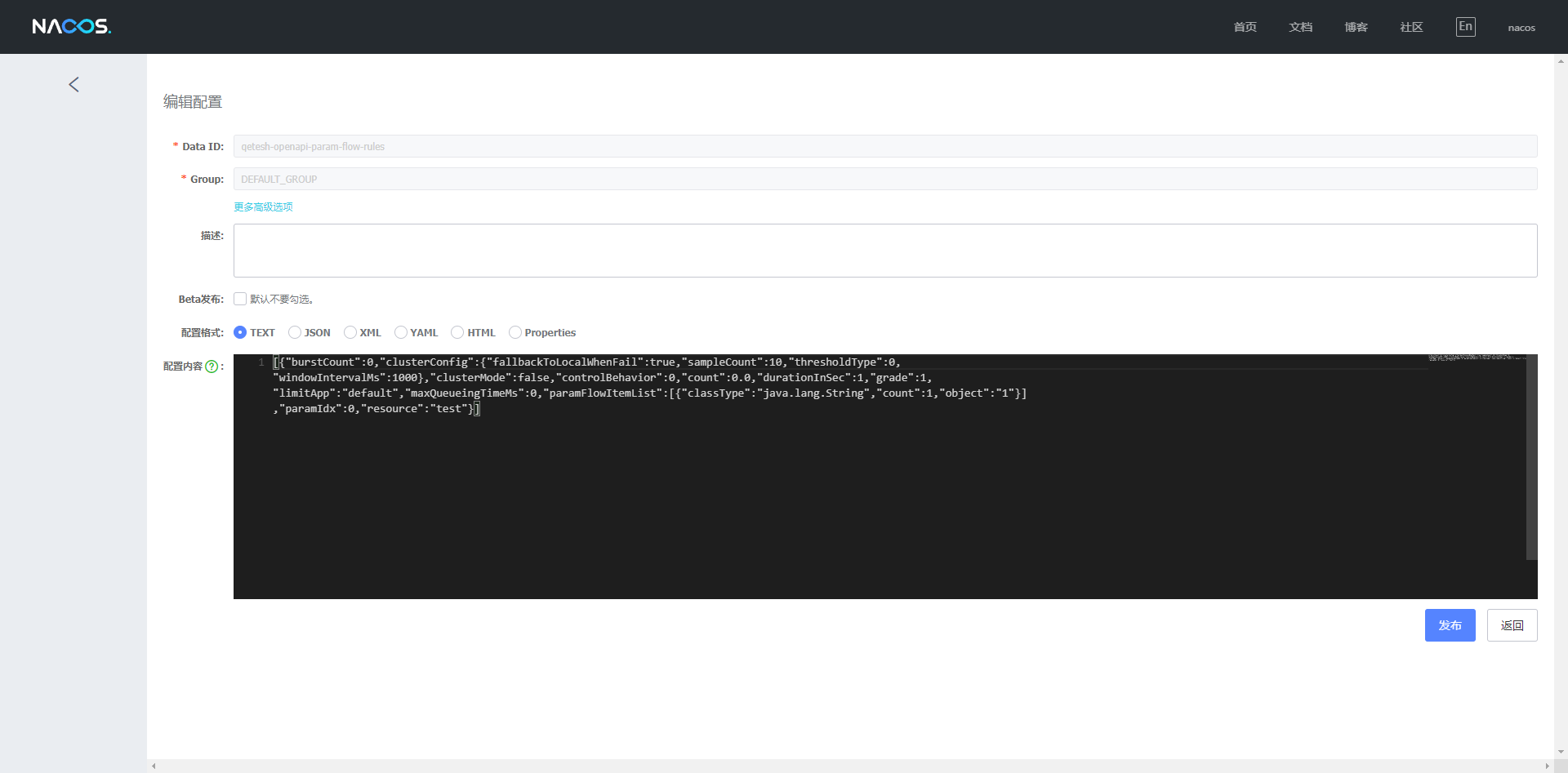

此时，Nacos 后台也会同步生成相应的配置信息：

nacos配置

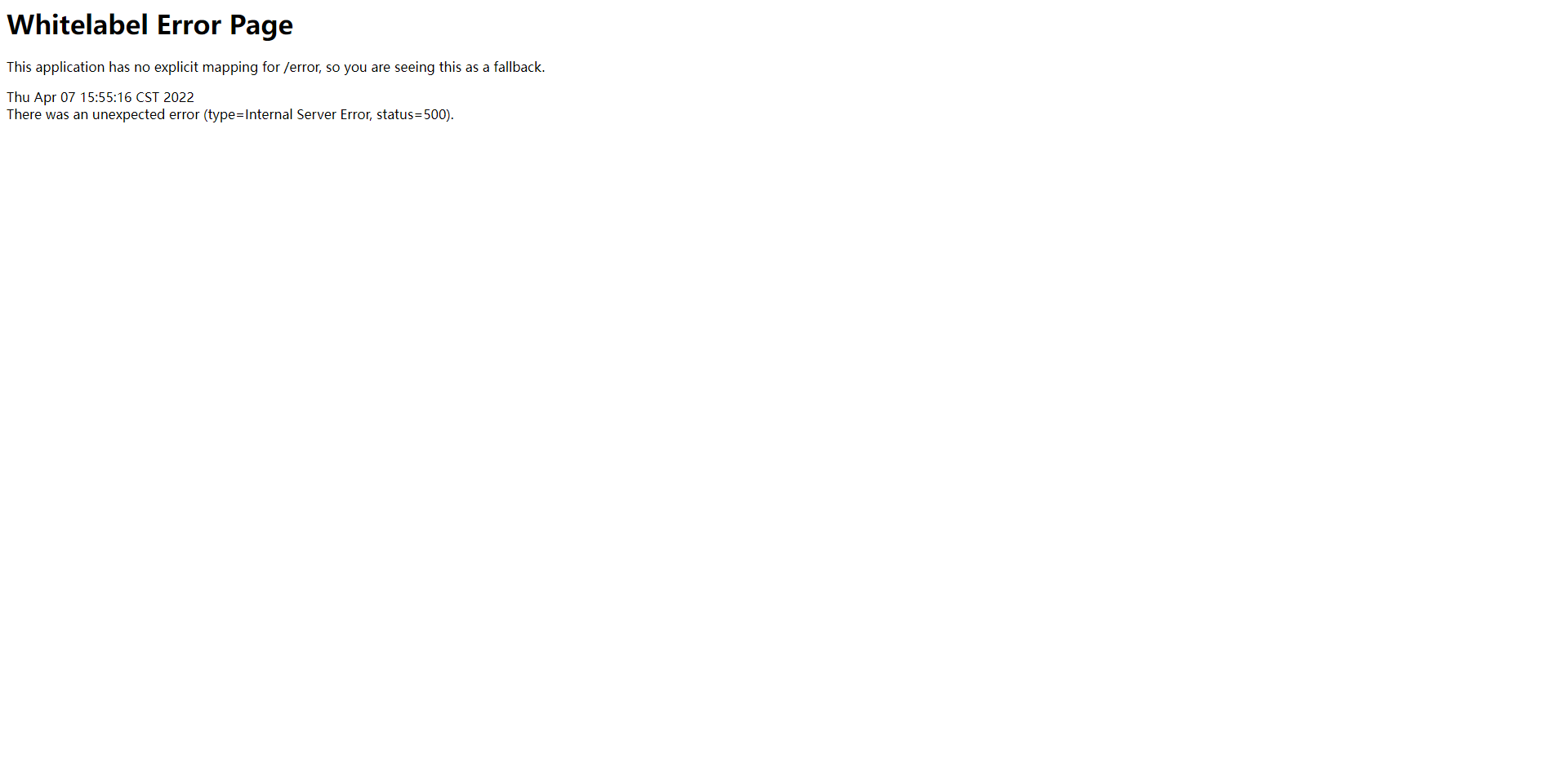

多次访问接口触发限流，即代表流控规则改造成功：

流控规则限流成功
